1953-1962 C1 Replacement Chassis

Quick Overview

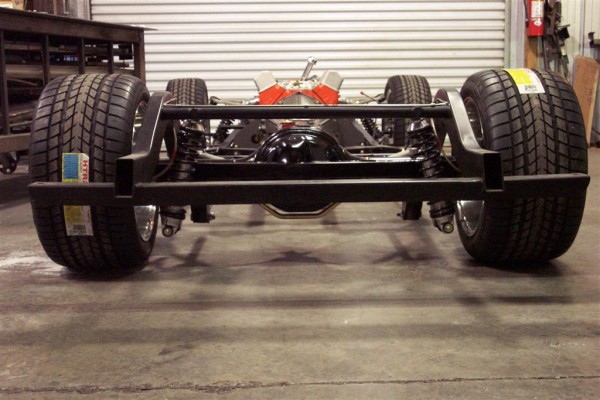

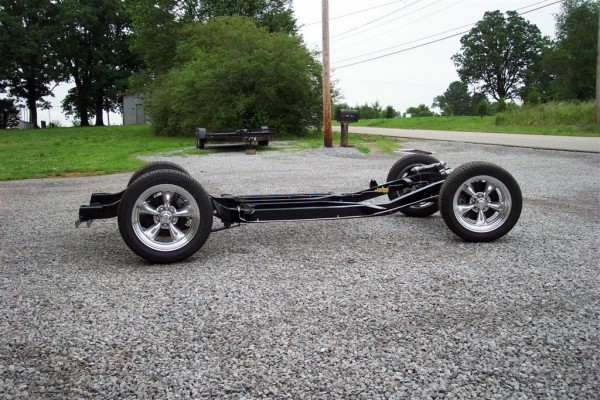

Only from Street Shop, we offer a new "mandrel formed" replacement chassis for your 1953-62 Corvette and is designed to fit under the stock floor-pan. This chassis utilizes the C4 1989-96 Corvette suspension, drastically improving handling and braking capability. Designed around the car's original features, this chassis allows you to "bolt on" your original body with only minor modification to your C1 Corvette body *.

* Requires trimming the lower edge of the front INNER fender panels, and a clearance notch must be made in the leading edge of the spare tire well below the trunk floor.

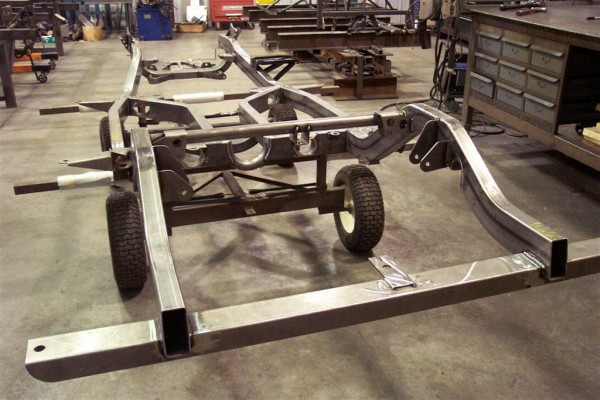

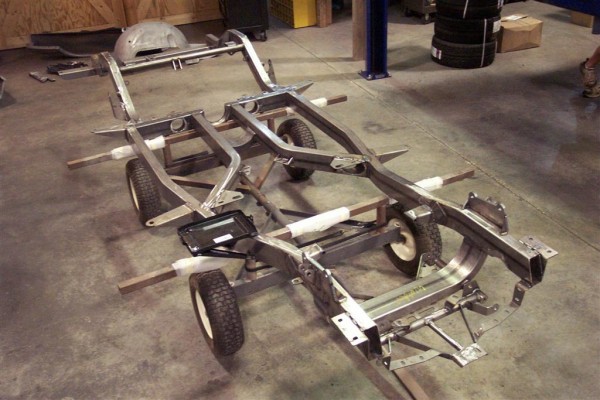

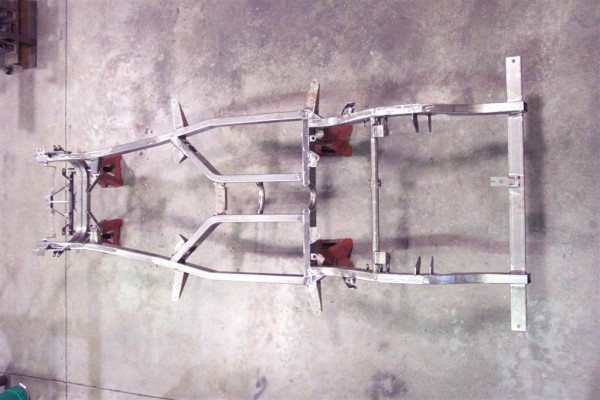

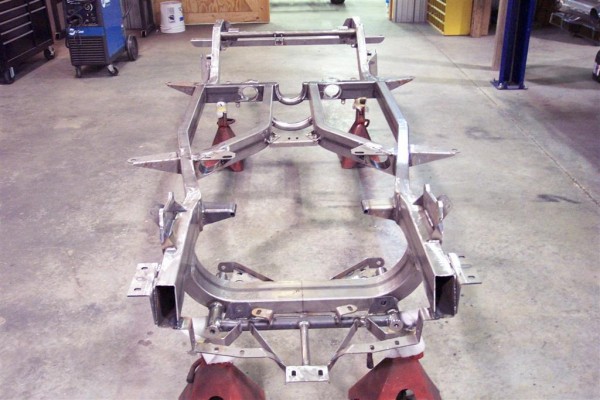

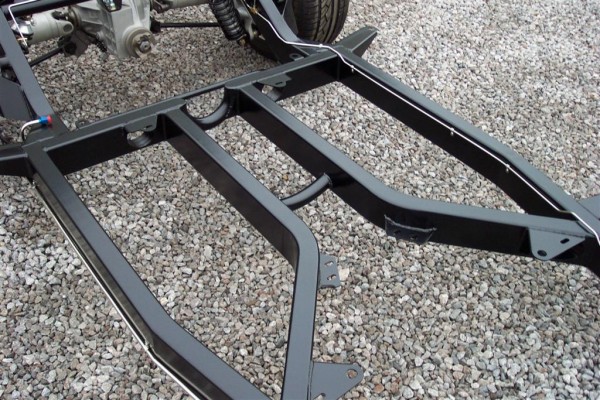

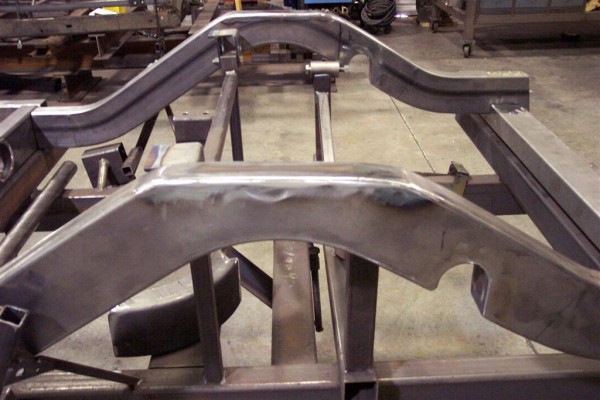

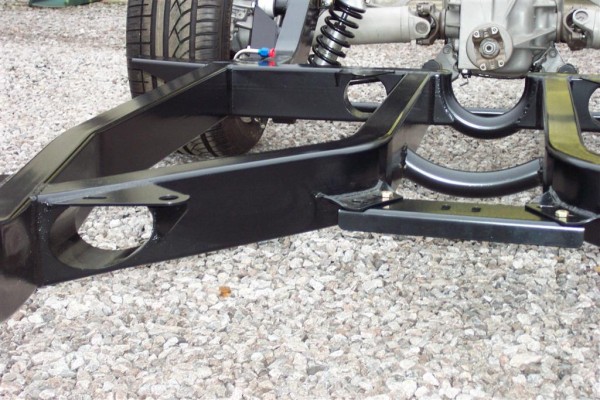

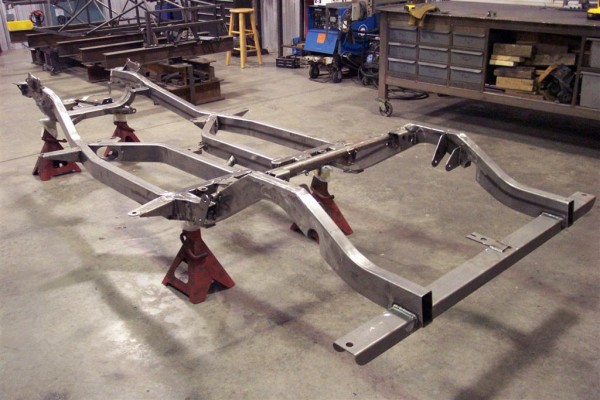

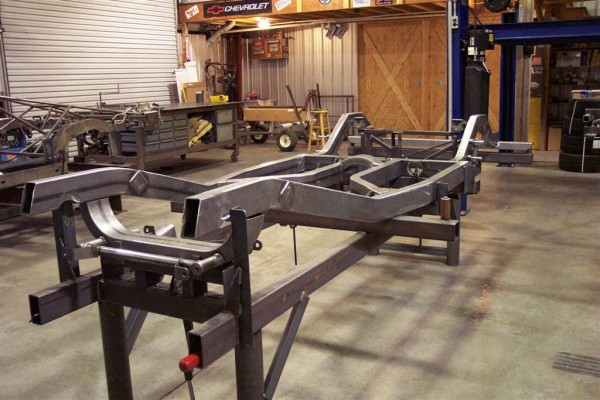

The process of mandrel bending our 4"x2"x0.120" wall steel tubing maintains the dimension of the tubing, thereby providing the maximum amount of stregth from the finished frame rail. These one-piece, formed rectangular rails are very rigid and lightweight. The end result is a frame that weighs slightly less than the original, but also one that resists the twisting and flexing common to these cars.

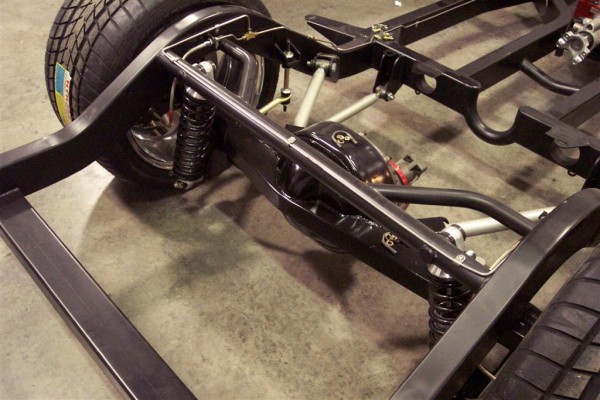

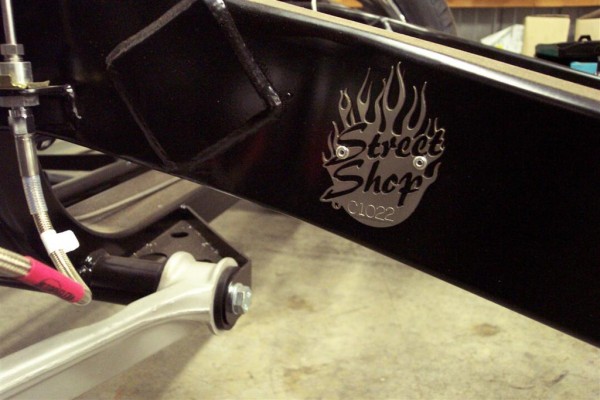

All chassis are finished in durable semi-gloss black powder coating and feature stock mounting for the bumpers and body. Engine and transmission mounts, which are capable of many engine / transmission combinations, are side mount style with a removable crossmember. Engine location is lower than stock to enhance handling by achieving a lower center of gravity. Coil-over shocks are used at each wheel and provide a completely adjustable ride, while a power rack and pinion steering unit is included for quick and responsive steering.

Also Available From Street Shop

C5/C6 Chassis for your 1953-1982 Corvette

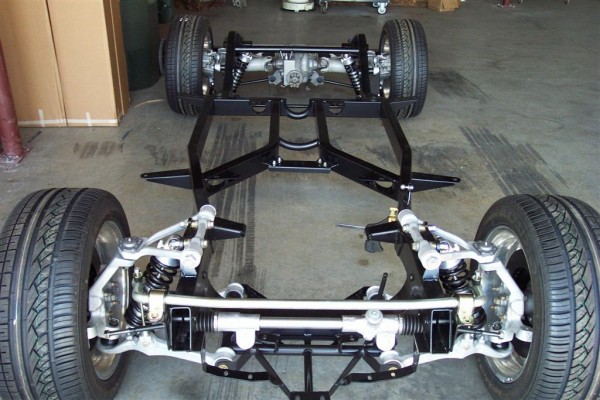

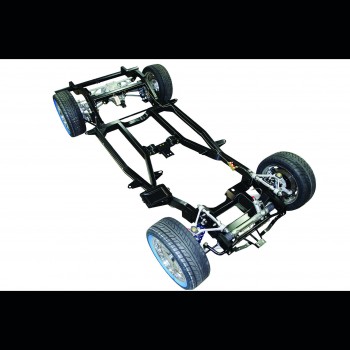

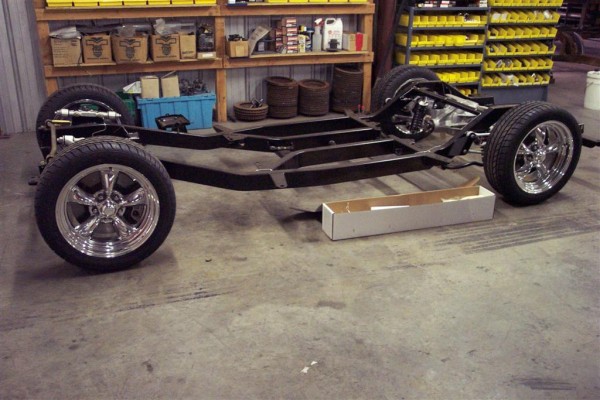

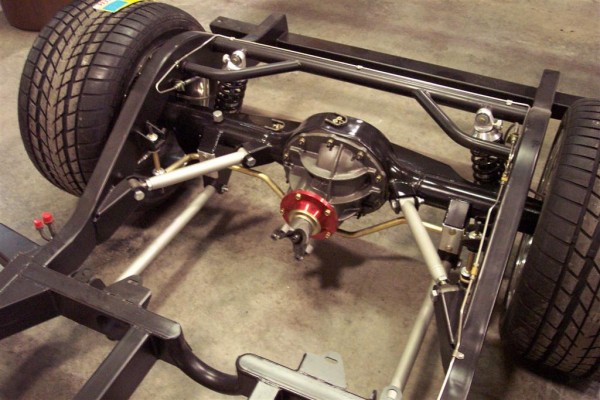

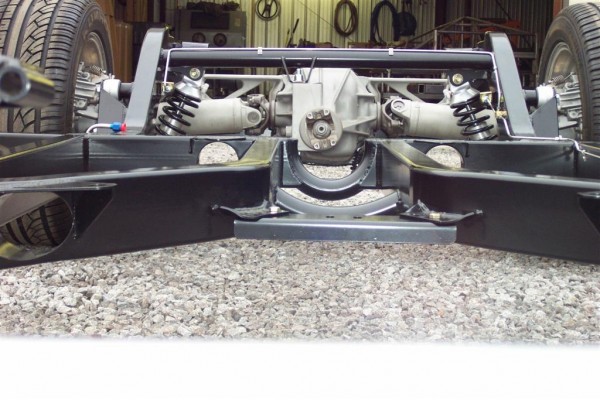

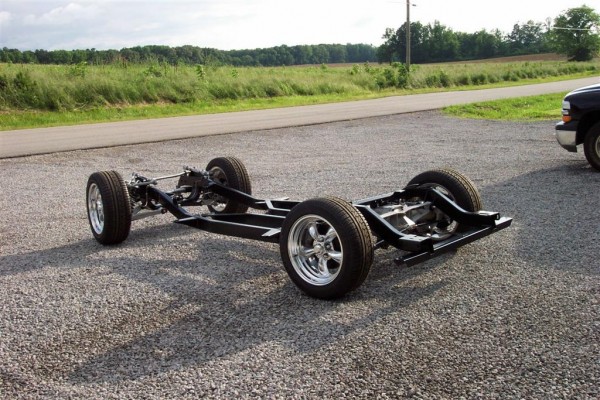

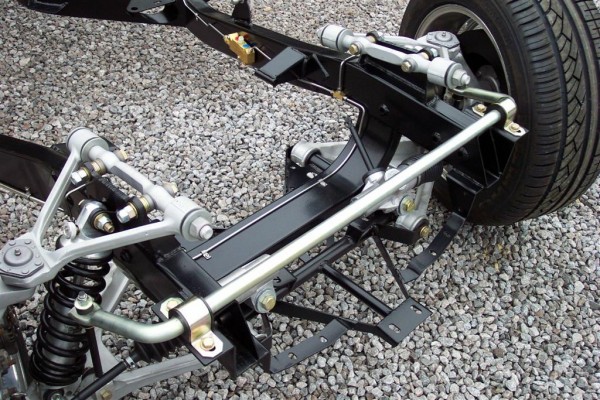

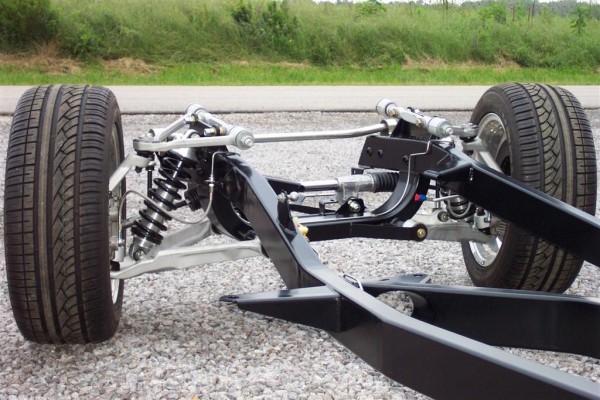

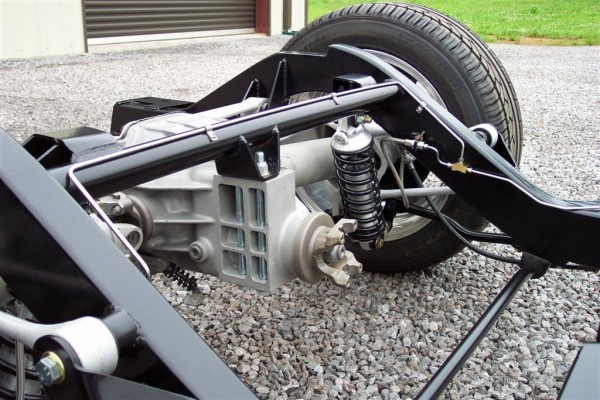

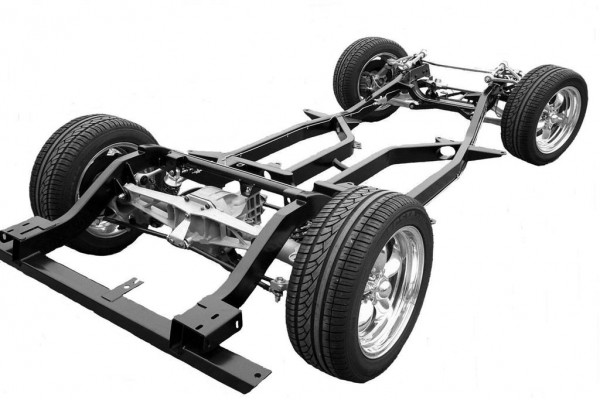

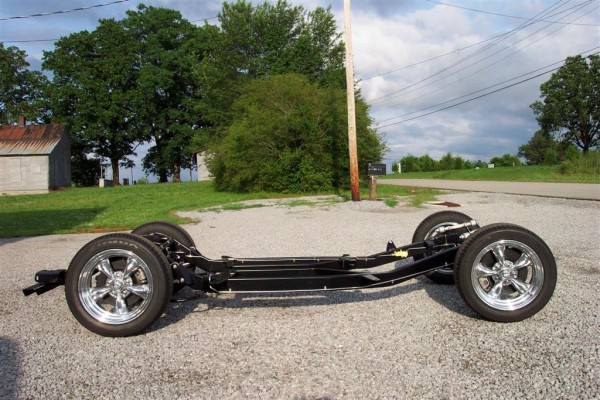

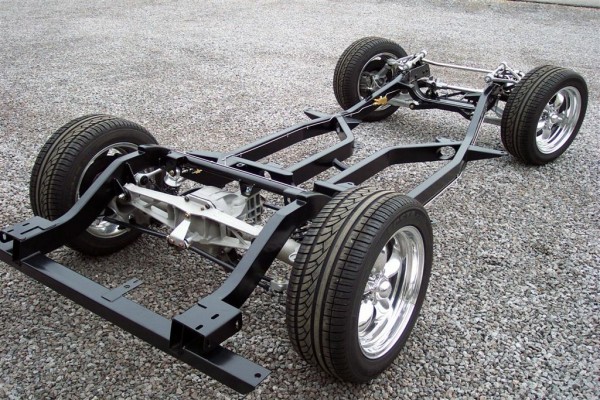

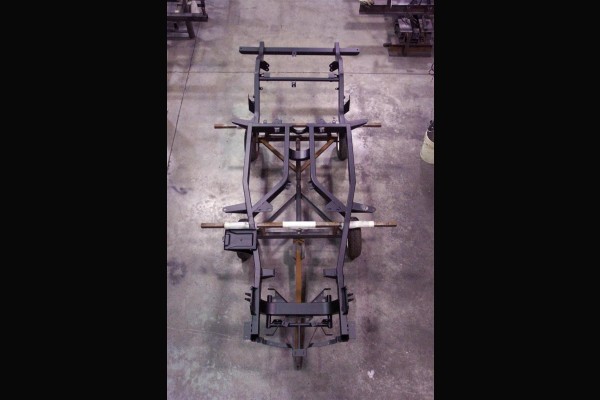

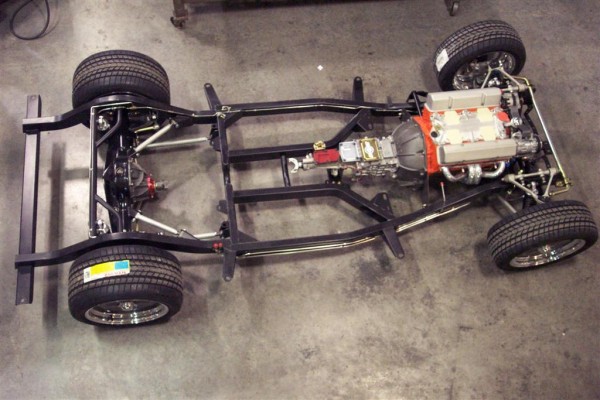

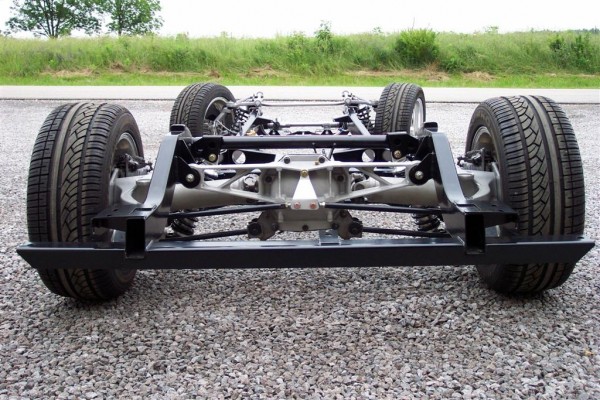

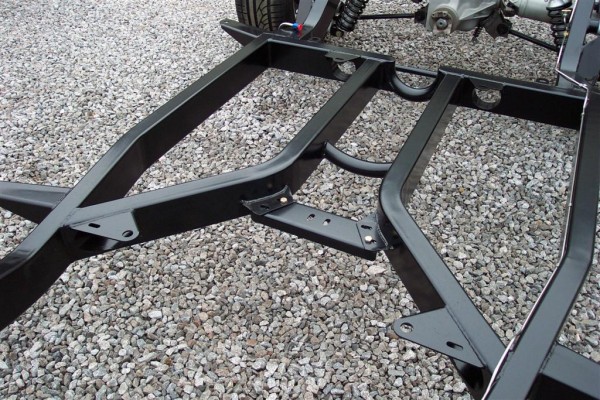

1953-1962 C1 Replacement Chassis1953-1962 C1 Replacement Chassis
Move your mouse over image or click to enlarge
1953-1962 C1 Replacement Chassis 2 3 4 5 1953-1962 C1 Replacement Chassis


Standard Bare Frame Specifications:

  • 4" x 2" x 0.120" Mandrel bent tubing.
  • Powder coat finish in semi-gloss black.
  • CAD designed, CNC cut components

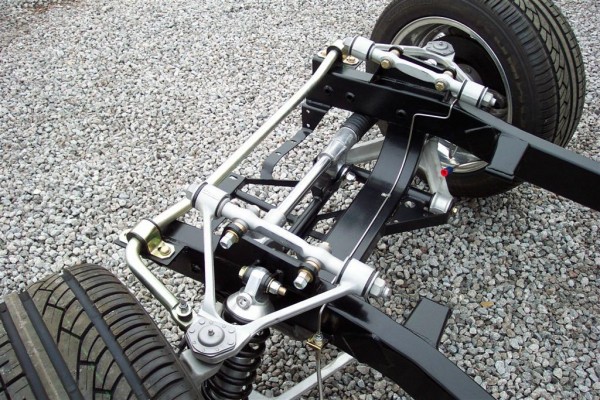

  • C4 Chassis features Mounts for 1989-1996 Corvette suspension front & rear.
  • C4 Chassis has near Stock track width and allows for use of Vintage appearing wheels.
  • C7 Chassis features Mounts for 2014-current Corvette Suspension front & rear.
  • C7 Chassis uses C7 Corvette Wheel Specifications.
  • C7 Chassis includes Custom Rear Cradle and Billet Rear Cover for HHD Differential Housing
  • Mounts for front and rear bumpers using stock brackets.

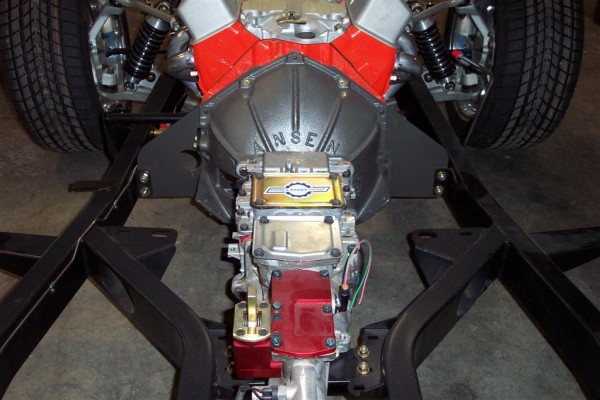

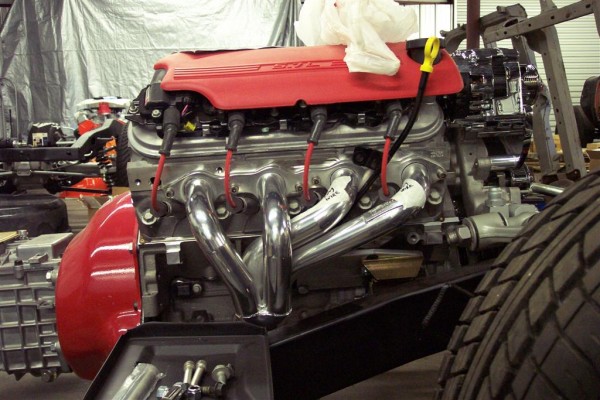

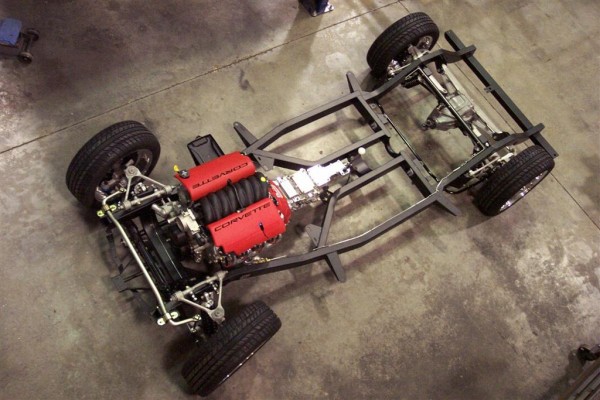

  • Engine & transmission mounts in factory locations.

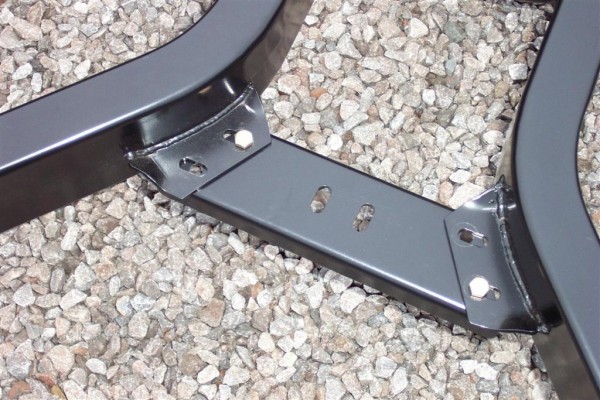

  • Removable transmission cross member.
  • Clutch pivot bracket in stock location.
  • Mounts for stock core support.

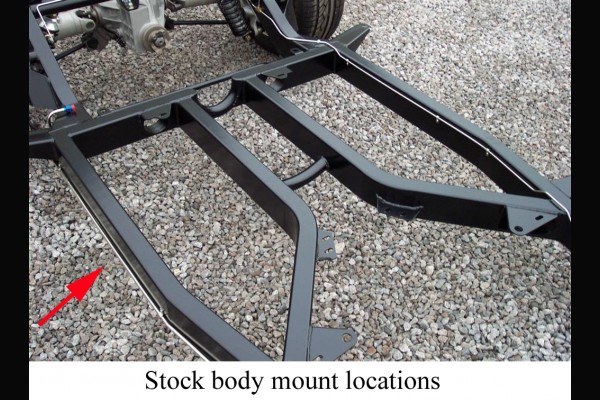

  • Body mounts in stock locations.
  • Customer Supplied C4 rear suspension modifications at no additional cost!

Standard Chassis Kit Components & Specifications:
Welded Chassis with stock mounting locations for Body, Bumper, engine mounts and Removable transmission Cross member, Powder Coated Semi-gloss Black (Other Colors Available at additional cost)

  • Factory-type Frame Mounted Battery Tray, C1

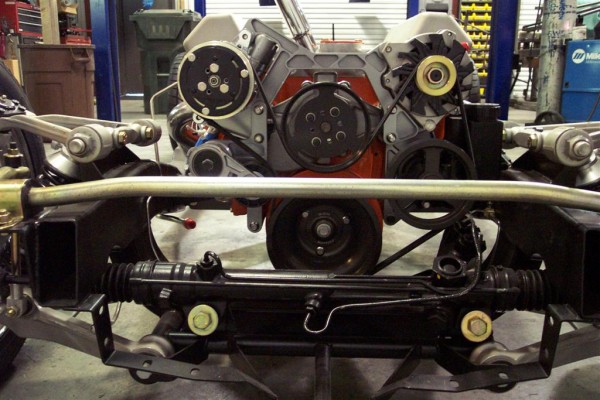

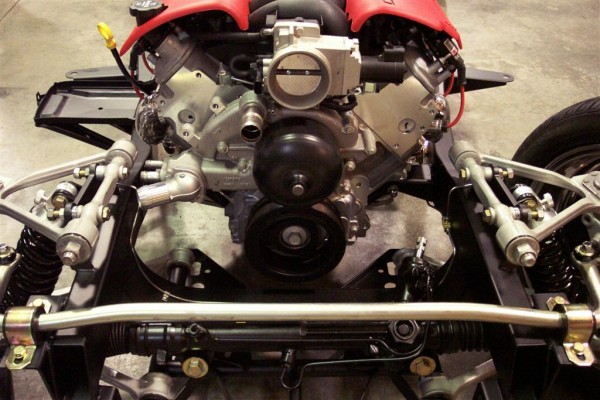

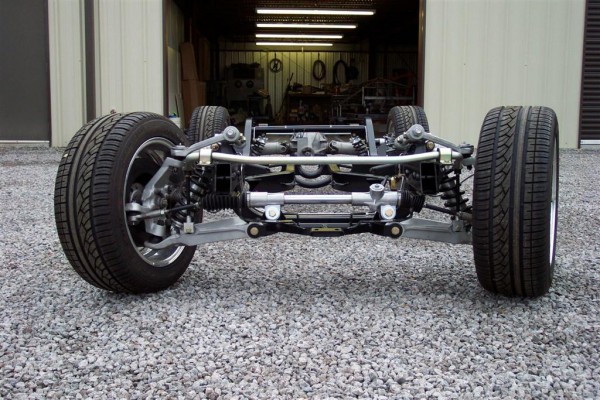

  • DSE Power Rack & Pinion w/ New Tie Rod Ends

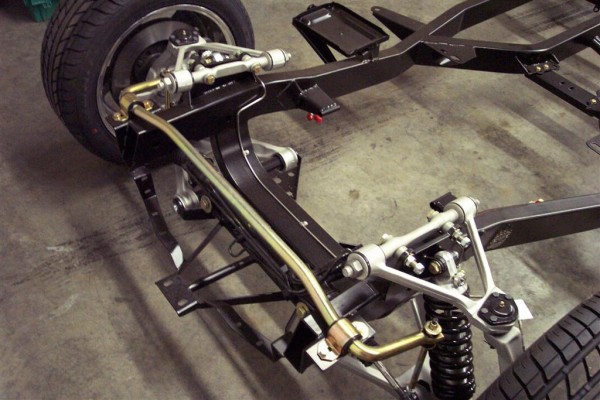

  • New 1" Front Sway Bar w/ Urethane Bushings & Billet End links (C4, C7 uses OE)
  • Steering Shaft Adapter, DSE Rack to Aftermarket Column
  • QA1 Aluminum Coil-Over Shocks, Single Adjustable, with HyperCo Springs, Front and Rear
  • Stainless Steel Brake System w/ Stainless Braided Hoses
  • Billet Aluminum Adjustable C4 Camber Bar, pr.
  • Grade 8 or equivalent fastener kit
  • Custom C4 Rear Toe Assembly

Available Options & Accessories:

  • Powder coat calipers.
  • Hydro boost hydraulic brake booster systems.
  • Vintage Air systems for original A/C and non-A/C Corvettes ('58-'77)

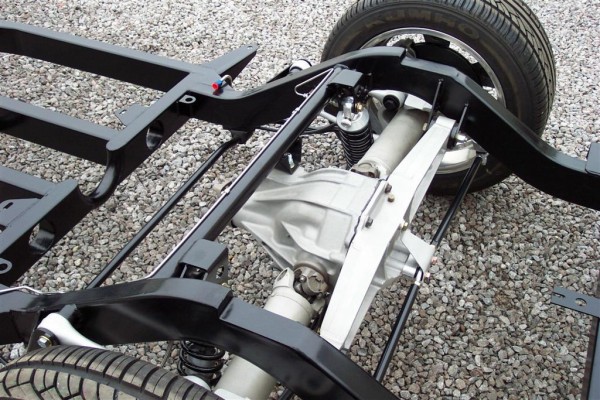

  • Street Shop, Inc.’s C4 based 5 link Rear suspension. Featuring our exclusive HammerHead 12 bolt based aluminum Differential Housing (avail. with 30, 33 or 35 spline posi-traction carriers), Billet Rear Cover and Billet control arms, Camber bars and toe assembly.
  • American Powertrain Tremec Transmission Kits with stock shifter location.
  • Rock Valley stainless steel fuel tanks with in-tank electric fuel pump.
  • Custom wheels from American Racing, Budnik, Billet Specialties, CCW and many more.
  • Most brands of tires available.
  • Multiple rear gear ratios available.
  • Offset rear sway bar ,C4
  • DeWtt’s aluminum radiators with custom outlet configurations available.
  • LS engine Harness Kits from GMPP.
  • LS engine drive accessory package with A/C, power steering, 140 amp alternator, and billet brackets.
  • 89-96 Corvette Front Suspension, Used; Cleaned, Fixture Checked & Rebuilt
  • Stainless Steel Fuel Line w/ AN Fittings
  • Stainless Steel Fuel Return Line w/ AN Fittings for EFI
  • LS Fuel Single Line Fuel System w/ SS Line, Return-Style Filter, Flexible Fuel Lines Using OEM Connectors From Engine to Fuel Tank
  • Rebuilt Calipers w/ New Brake pads, Includes Mounting Brackets
  • New PBR (OEM) Calipers for C4 13” Front Rotors and Street Shop’s Exclusive C4 to C5/6 Rear Brake Conversion
  • New OEM-style Rotors, Complete Set of Four
  • Drilled And Slotted Performance Rotor Kit w/ 13" Front, Complete Set of four
  • Wilwood 6-Piston Front Calipers and Wilwood 4-Piston Rear Calipers for Stock-type Rotors and PolyMatrix Brake Pads, Powdercoated Black (Add $120 for Red Powdercoat)
  • American Racing Torq Thrust II Wheels (Polished or Grey Spokes) and Tires (17x7 w/235/45/17 on C1, 17x8 on C2 w/ 245/45/17 & C3 w/ 255/45/17)
  • Lokar Universal Parking Brake Cable Kit w/ Corvette Clevis
  • Master Power Dual Stage Master Cylinder Upgrade Kit for C1
  • Flaming River Steering Column for 1953 - 1962 Corvette, Non-Tilt, Paintable

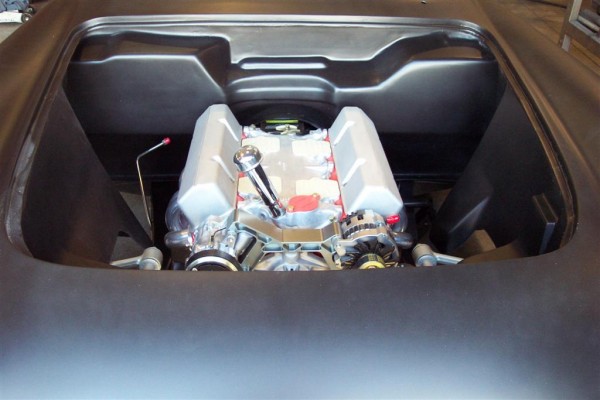

  • GM Performance Parts Crate Engines

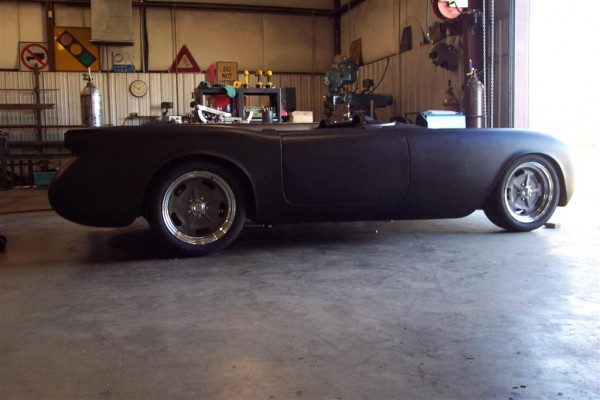

Feature Cars Using This Chassis
